Transparent screen application of glass curtain wall
-yong'ao Barcelona project
Source: www.htuled.com Author: ShenZhen HTU Optoelectronics Co., Ltd
The outdoor LED display screen project of Barcelona project is located at No. 888, Honghe Avenue, Yongchuan new city, Chongqing. The project is made of outdoor LED light strips. The screen size is 10.496 * 7.68 meters, totaling 80 square meters. The display screen spacing is 10mm. The screen has light transmission, high brightness and good heat dissipation. There is no need to install air conditioner for cooling. The installation structure is simple, and there is no need to weld a large number of steel structures for weighing.

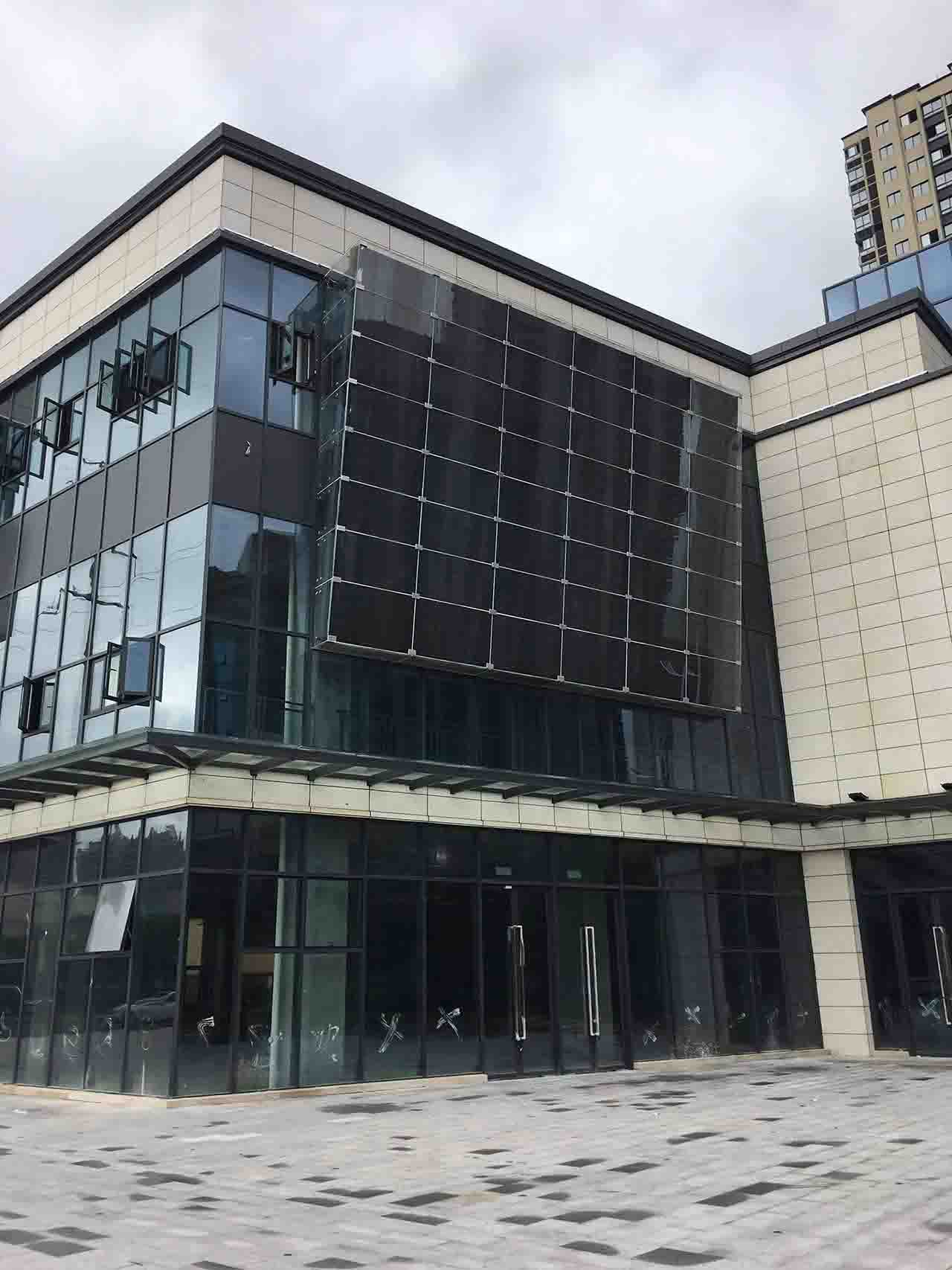

The screen body is installed behind the glass curtain wall. The steel structure of the screen body can be installed by borrowing the steel structure of the glass curtain wall. The screen body can be firmly fixed by making a simple frame.
Looking out from the room, the screen body has a certain gap and the screen body is transparent. In the room inside the building body, the daylighting is still good. From the outside, when the screen is not lit, you can only see the glass curtain wall. When the screen is lit, you can see a perfect display screen.
The after-sales maintenance of the screen is relatively simple, and the screen itself can be maintained from front to back. This project is installed behind the glass curtain wall, and the post maintenance mode is adopted in this project. Due to the excellent design mode of the screen, the maintenance is very convenient.
This kind of glass curtain wall can be installed in a large area. According to the size of the installation area, it can be designed specifically. There are about seven types of LED light bar products suitable for glass curtain wall: htu-p07, htu-p10, htu-p15, htu-p20, htu-p25, htu-p31 and htu-p25-50. If the area of glass curtain wall is more than 500 square meters, htu-p25-50 can be used, which has high light transmittance and saves cost.
This article is only a preliminary analysis of the LED glass curtain wall screen. Please forgive me for any mistakes. If you have different requirements, please call the Engineer for details.
Introduction to yongao Barcelona:
"Yongao Barcelona" is the first real estate project developed by Chongqing zhongkepu yongao Real Estate Co., Ltd. in Yongchuan.
The project is located in the sports center of the new town. It is built along the Hongqi River and along the water. The water shoreline is 500 meters long. The project covers a total area of 135 Mu and a total construction area of about 170000 m2. "Yongao Barcelona" is close to the College of Arts and Sciences of higher education, Hongqi primary school and Yongchuan Sports Center, the second largest sports center in Chongqing. Yongchuan sports center includes 6 light tennis courts, 6 light basketball courts Two gate courts, a swimming pool and a large comprehensive stadium.

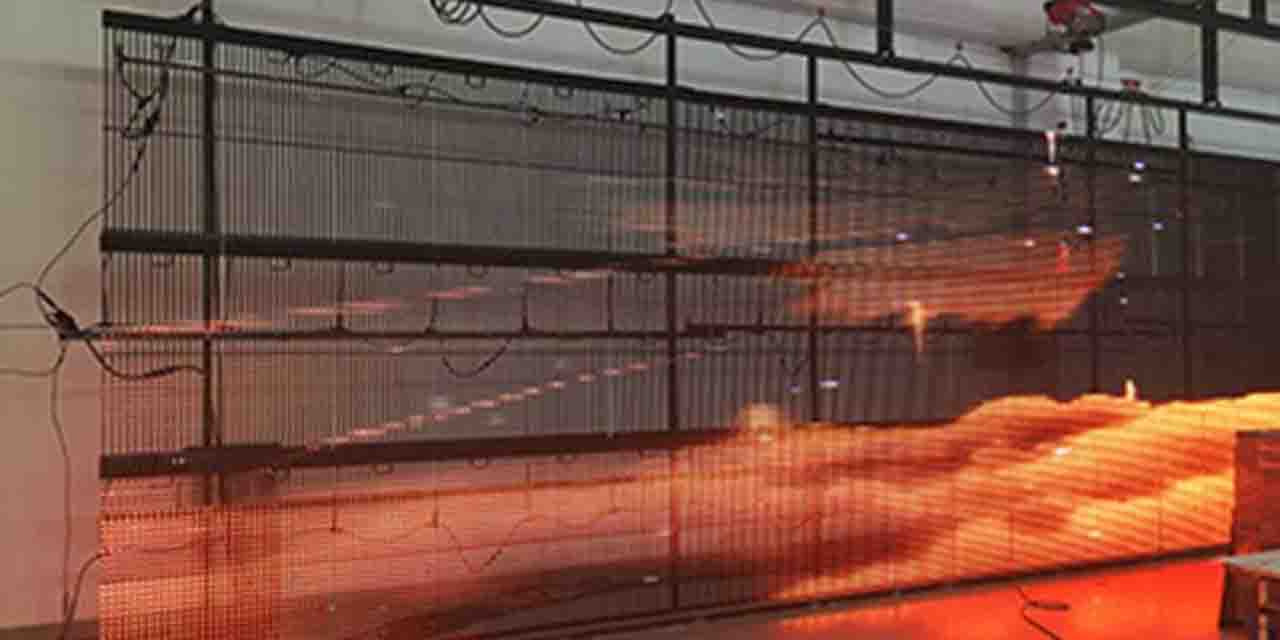

Factory aged products (figure below)
Back of screen (below)
Display effect (figure below)
